Facebook Linkedin Instagram YoutubeAutomated Roll Warehouse
Optimize the space in the production area and make loading and retrieving rolls safer and more ergonomic. Our automated warehouse for fabric rolls is designed to perfectly integrate production, order, and safety into a single solution.

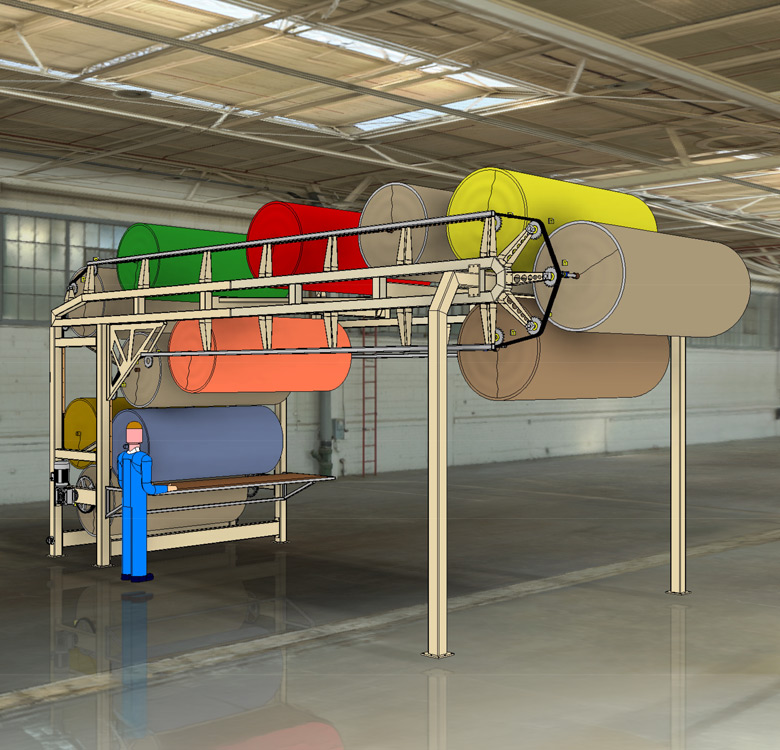

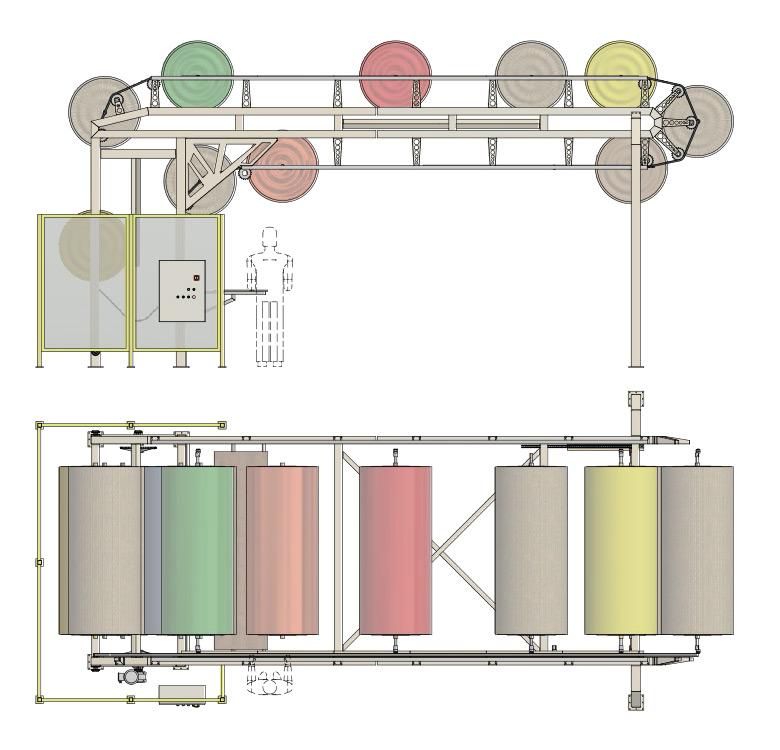

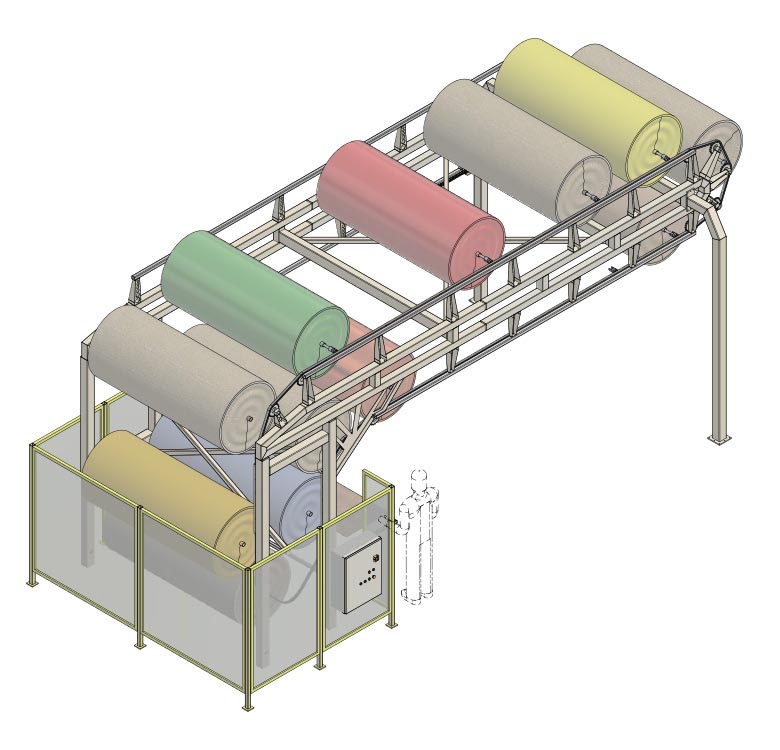

The warehouse is a self-supporting structure designed for storing fabric rolls directly near production lines. Thanks to its vertical configuration, it allows optimal use of the available height, freeing up floor space and improving department organization.
The storage capacity reaches up to 20 rolls, with a maximum diameter of 900 mm and a weight of up to about 80 kg per roll, ensuring efficient management of bulky but not excessively heavy rolls. This helps reduce clutter, speed up operations, and keep the necessary material always within reach.
Main features
- Self-supporting structure:
Designed to ensure stability, durability over time, and easy installation in various production environments. - Roll capacity and dimensions:
Up to 20 rolls with a maximum diameter of 900 mm, allowing orderly management of large volumes of fabric. - Simple and reliable manual management:
Roll positioning is done via a control lever, with an intuitive manual system that reduces complexity and maintenance costs. - Fully configurable positions:
The arrangement of the rolls is completely configurable, allowing adaptation to the specific needs of each production and fabric type. - Protective guards:
The system is equipped with protective guards on critical areas, increasing operator safety during daily use.
Benefits for the company
- Space optimization:
The vertical development makes it possible to use the room height, freeing floor space for other production activities. - Improved work ergonomics:
Loading and retrieving operations become more comfortable and less tiring, reducing the risk of injuries and improving operator well-being. - Material organization and traceability:
Each roll has a defined, configurable position, making it easy to quickly identify the required fabric and reducing search times. - Ease of use and low maintenance:
Manual operation via control lever ensures long-term reliability and limits the need for complex technical interventions. - Increased workplace safety:
Protective guards and the sturdy structure help create a safer and more controlled working environment.
Fields of application:
- Textile companies that work quilted fabrics and need to manage numerous rolls in limited spaces.
- Production departments where it is essential to have material close to processing lines without compromising order and safety.
- Contexts with high roll turnover, where quick access and configurable positions are crucial.
Do you want to improve the organization of your textile department and optimize the space dedicated to fabric rolls?
Contact us to study together the most suitable configuration for your vertical roll warehouse and integrate a compact, safe, and reliable solution into your production.
